DIOシリーズ ヘッドライト DI-H134HD

  • Selectable 5 mode
  • COB LED & Chip type LED
  • Dust Proof , Water Proof (IP64) & 1m Impact Resistance
  • Light Output
  • Run Time
  • Lighting Technique
    Wide beam
  • Beam Distance

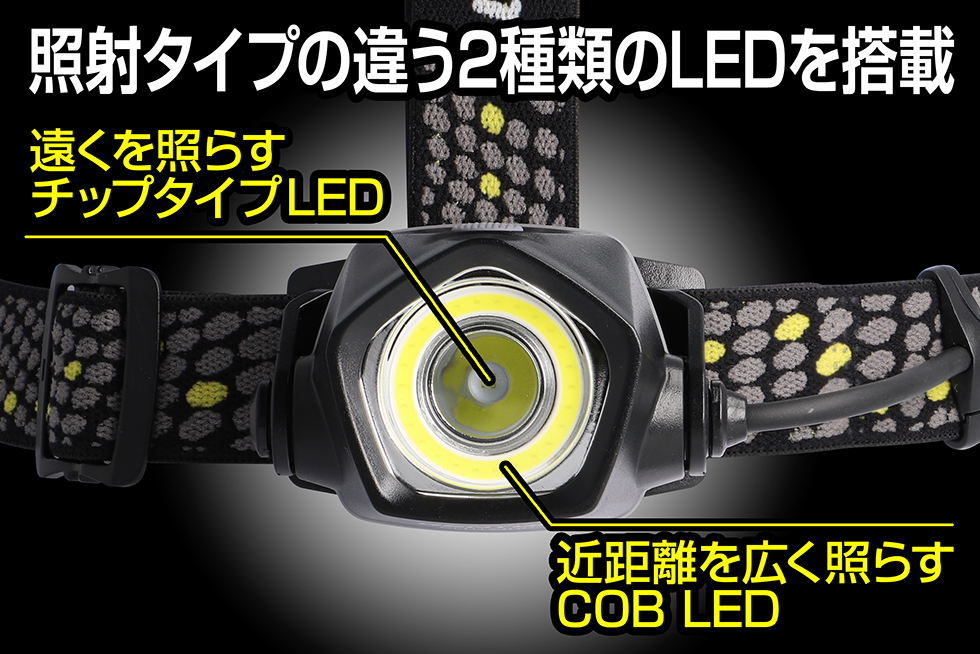

  • LED type:1 × Chip type white LED, 1 × white COB LED
  • Light Output:400lm (ALL) / 200lm (Chip type LED High Mode) / 40lm (Chip type LED Eco Mode) / 200lm (COB LED High Mode) / 100lm (COB LED Eco Mode)
  • Battery type:4 × AA Alkaline Batteries or 3.6V 6,400mAh Li-ion Rechargeable Battery
  • Run Time:【HEADLIGHT】6h (ALL) / 11h (Chip type LED High Mode) / 51h (Chip type LED Mode) / 15h (COB LED High Mode) / 28 h (COB LED Eco Mode),【BATTERY BOX】180h (ON) / 350h (Flashing)
  • Lighting Technique:Wide Beam
  • Beam Distance:93m
  • Dust Proof & Water Proof (IP64)
  • Impact Resistance:1m Drop
  • Size:【Front】W63.0×H40.0×D45.0mm (W2.48×H1.57×D1.77in),【Rear】W90.0×H74.5×D45.1mm (W3.54×H2.93×D1.78in)
  • Weight:303g (10.7 oz)
  • Accessory:Head strap, 4 × AA Alkaline Batteries
  • Optional:Dedicated Rechargeable Battery(Model Number:HW-64SB)


  • COB LED : COB LED means chip on board LED, it is a solution that multiple LED chips can be placed into a small amount of space. COB package has excellent uniformity of light from light emitting surface. COB technology avoid multiple shadow effect, which might occur with multiple LED package.
  • Reflector Type : Reflects the light and condenses the beam forward.
  • Instant-Off Switch:Switches Off by single operation if stays at any output mode.
  • Red Rear Light : Red Rear Light on battery pack for safety indication. It allows user to be seen in the dark even from behind.

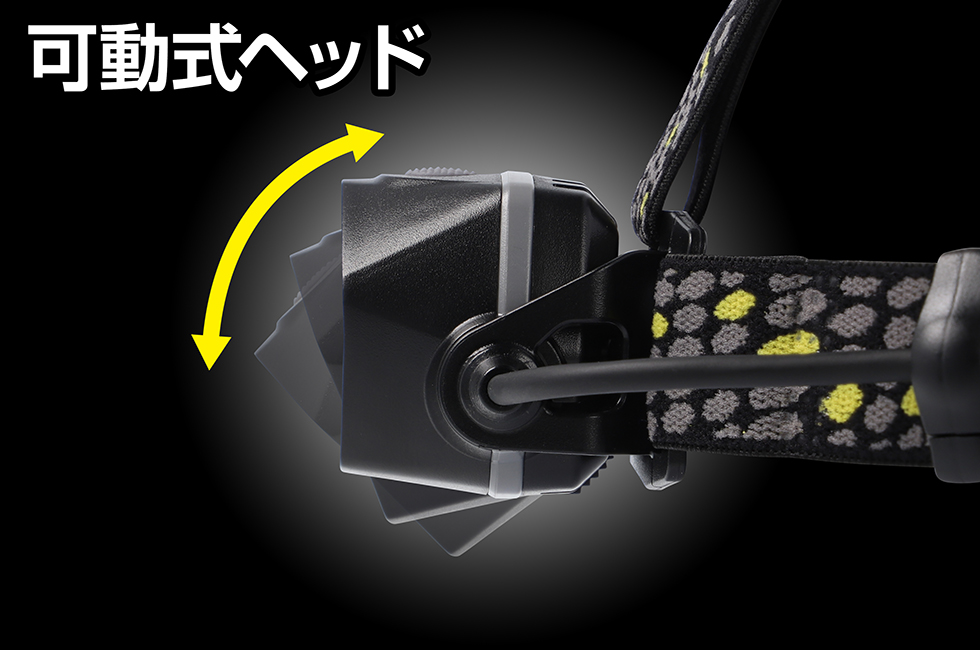

  • 60°Movable Head
  • 【HEAD】 Head Push Switch, 【BATTERY BOX】Head Push Switch
